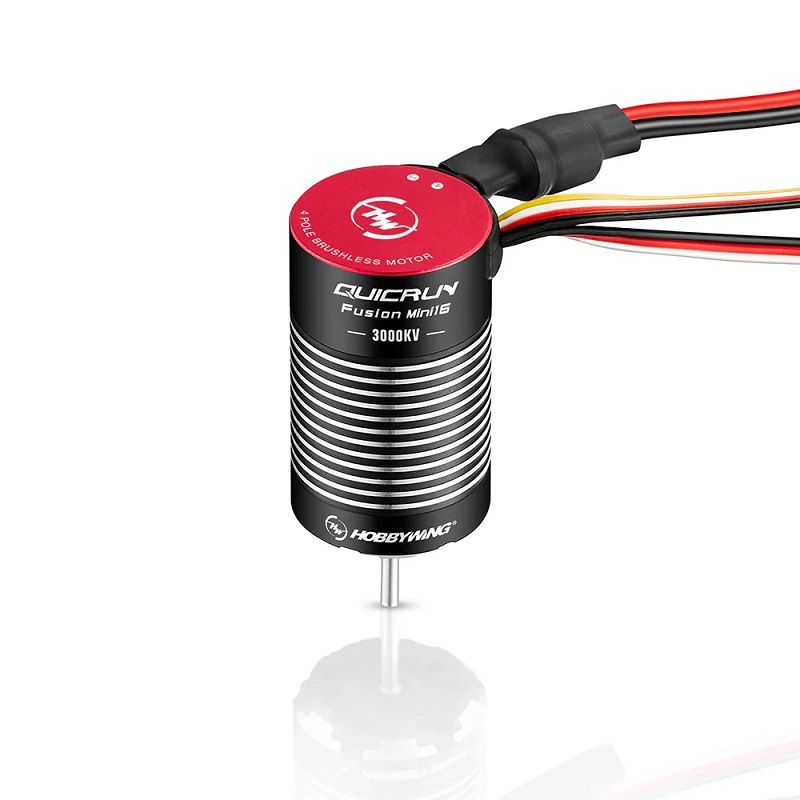

Hobbywing QuicRun Fusion Mini16 3000KV (370 Spec) 2in1 Brushless Motor/ESC w/FOC (CS3)
SKU HWI30120403
$59.99
Sold out
Save this product for later
Hobbywing QuicRun Fusion Mini16 3000KV (370 Spec) 2in1 Brushless Motor/ESC w/FOC (CS3)
Product Details
UPC: 088718513234
Brand: Hobbywing
QUICRUN Fusion Mini16 Overview
The Fusion Mini16 is the industries first commercialized FOC-integrated power system suitable for 1/18 and 1/16 scale models. With a compact frame layout of 24x42mm and a lightweight design of 72g, the Fusion Mini16 offers an aesthetically pleasing solution that resolves wiring issues on smaller crawling vehicles.
Connect the yellow signal wire to the open channel on the remote control to adjust the drag brake force in real time. Adjusting drag brake on the fly can be achieved to meet various application environments.
The Fusion Mini16 is equipped with a FOC drive method. The large torque and excellent linearity when operating at low speeds further exceeds standard brushless systems, and matches the feel and control of brushed systems. The Fusion Mini16 is nearly silent.
Up the hill, the Fusion Mini16 system automatically increases the torque output to overcome resistance and acceperate up the hill. Goin down the hill, the ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill.
The Fusion Mini16 is IP65 protected. It has excellent waterproofing and dust-proofing performance to cope with complex and various conditions.
Features
- The QuicRun Fusion Mini16 FOC systemfeatures an integrated design of the ESC and motor, simplifying the car frame layout and wiring for enhanced convenience. Employing FOC (Field Oriented Control)driving mode for rock crawlers, it delivers strong low-speed torque, improving upon standard brushless systems and often being preferred over brushed systems for its overall feel.
- The system boasts high efficiency, generates less heat, and effectively extends run time while the motor operates more quietly and smoothly. With an IP65 protection grade, it’s capable of running in all conditions. It offers intelligent torque output and speed closed-loop control for precise handling and includes active drag brake force adjustment, providing superior holding power on inclines.
- Equipped with a strong built-in switch mode BEC, the system offers a continuous current of up to 4A and supports switching between 6V and 7.4V, enabling it to drive high-torque and high-voltage servos. It also includes multiple protection functions: battery low voltage, overheat, throttle loss, and lock-up protection. For convenient ESC parameter settings, it supports LED and LCD G2/Pro program boxes.
Product Specifications
| BEC | Yes |
| BEC Continous Current | 4A |
| BEC Voltage | Adjustable |
| Forward | Yes |
| Input Voltage | 2S - 3S |
| Manufacturer # | 30120403 |
| Maximum Burst Current | 80A |
| Maximum Continuous Current | 30A |
| Motor Type | Brushless |
| Outer Diameter | 0.94" (24 mm) |
| Product Length | 1.65" (42 mm) |
| Reverse | Yes |
| RPM/Volt (Kv) | 3000KV |
| Shaft Diameter | 0.09" (2 mm) |
| Shaft Length | 0.53" (13 mm) |
| Speed Control | Included |
